PIKE ARMS®
BILLET TRIGGER ASSEMBLY
FOR RUGER® 10/22®
- 2.5 LB MATCH GRADE
- ADJUSTABLE TRIGGER TRAVEL
- REMOVABLE SIDEPLACE ACCESS
- SEAR ENGAGEMENT WINDOW

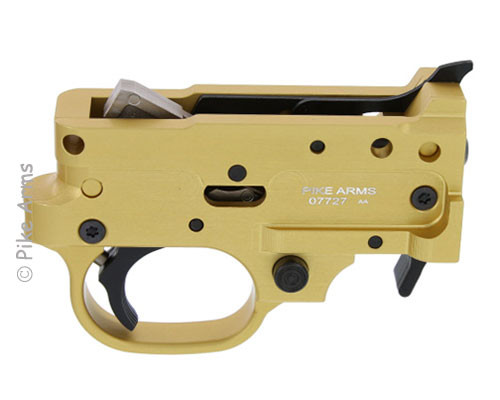

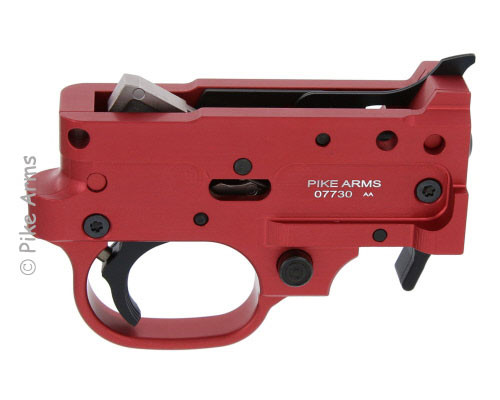

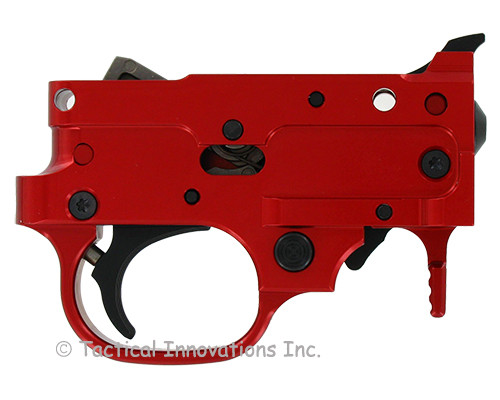

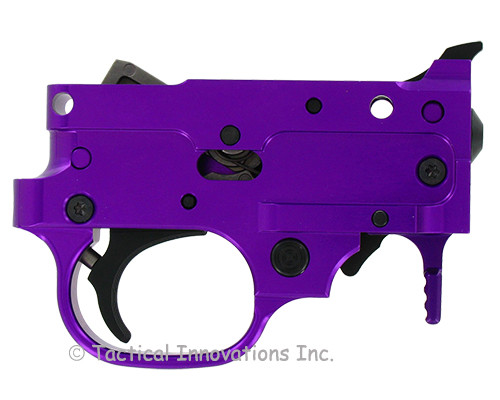

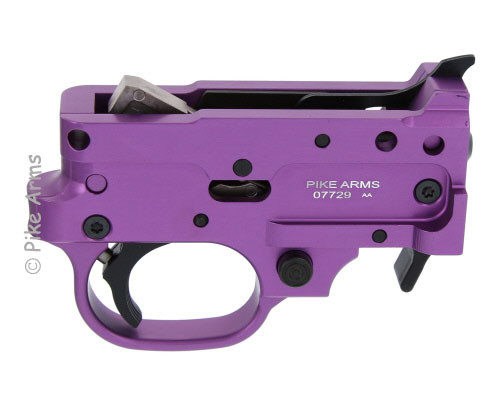

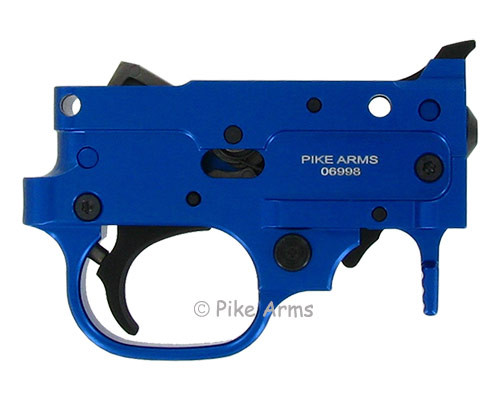

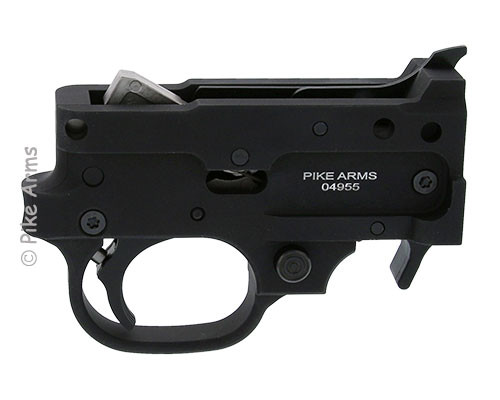

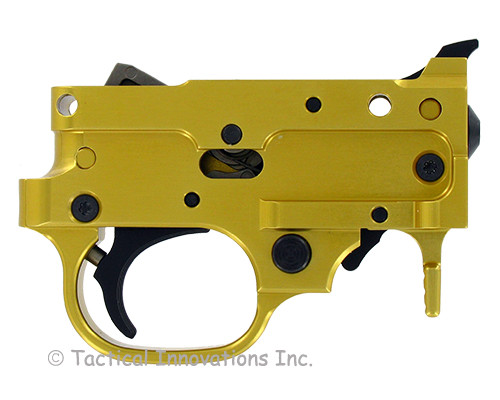

PIKE ARMS® BILLET TRIGGER ASSEMBLY - MATCH GRADE - FOR RUGER® 10/22®

MATCH GRADE - 2.5 LB RELEASE (-0.0/+.5)

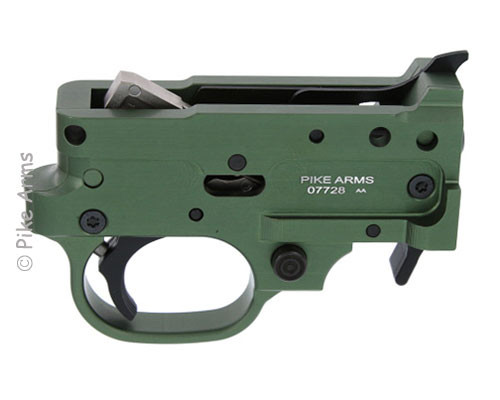

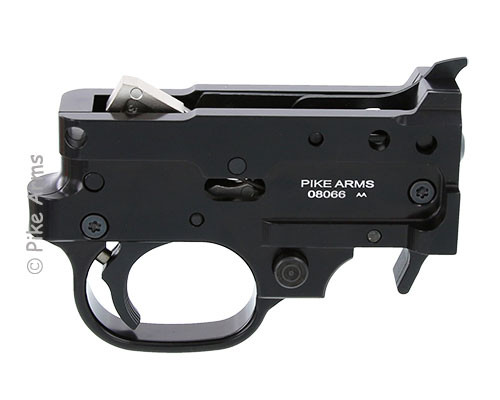

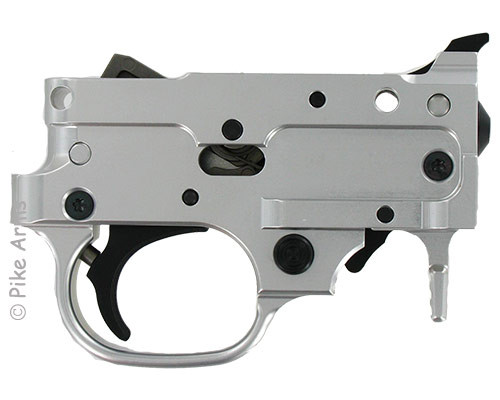

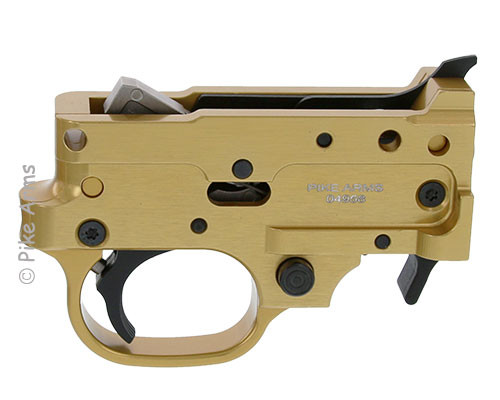

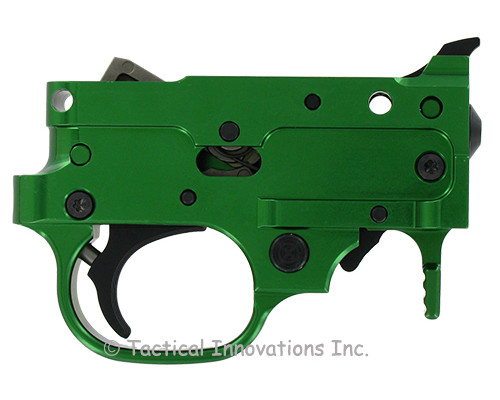

The Pike Arms® Billet Match Grade Trigger Assembly for Ruger® 10/22® rifles is precision CNC machined from billet T6 aircraft grade aluminum and provides a cost effective upgrade alternative to the current production Ruger® black plastic trigger housing while also offering colorful options for custom rifles.  Each Pike Arms® Billet Match Grade Trigger Assembly comes completely assembled and ready to drop into your Ruger® 10/22® rifle with no gunsmithing or fitting required.

The Pike Arms® Billet Match Grade Trigger Assembly is a two piece precision machined assembly that can easily be disassembled by removing the sideplate for easy access to the fire control components rather than having to force all the fire control components in and out through the top of the housing.  The hammer, sear, disconnector and trigger components are 100% compatible with Ruger® BX factory parts and the trigger and mag release are Ruger® current production BX black plastic parts.

Custom color combinations of the (1) trigger housing, (2) the trigger and (3) the mag release can be achieved by purchasing the additional desired Pike Arms® BX compatible BILLET TRIGGER and / or the Pike Arms® Mag Release in the color and style of your choice, which can be quickly assembled by our tech staff prior to shipping at your request.

The Pike Arms® Match Grade Billet Trigger Assembly provides a precision quality trigger pack solution for an upgrade on a Ruger® 10/22® factory rifle or for your custom rifle build.

Review This Product

PIKE ARMS® BILLET TRIGGER ASSEMBLY 2.5 LB MATCH GRADE FOR RUGER® 10/22®

Thank you for your purchase of a Pike Arms® Match Grade Billet Trigger Assembly for Ruger® 10/22® rifles and compatible receivers.  Our trigger housings are made in the USA using modern CNC equipment to exact tolerances to provide a part that will provide many years of functionality and pleasure and can be used as a direct replacement for Ruger® factory trigger housings or can be used for custom rifle assemblies.

! SAFETY !   PLEASE ENSURE THAT YOUR FIREARM IS NOT LOADED BEFORE CONTINUING.

One difference and advantage the Pike Arms® Billet Trigger Assembly provides is the inclusion of a trigger return spring and plunger (included standard) which allows you to adjust your trigger travel distance.  Adjustment of the trigger travel is as follows:

    Note: the safety will need to be disengaged at this time to set the over travel properly.

    Pull the trigger rearwards as far as it will go (as if pulling the trigger to shoot).  The over travel can now be precision adjusted by adjusting the setscrew depth as desired using the following guidelines:

 - Tightening the set screw (screwing it in) too much will not allow the hammer to be released.

 - Conversely, if you do not have the setscrew screwed in far enough, you will have excessive trigger travel and the the trigger will contact the trigger guard, resulting in finish damage to the surfaces of both the trigger and the trigger guard.

The position depth of the trigger over travel setscrew DOES NOT affect the trigger pull weight in any way.

NOTE: The Pike Arms® Billet Trigger Assembly is only compatible with BX style triggers.  When changing triggers for a different color or style, ensure that you select a Pike Arms trigger that is listed as a BX compatible style.

Reliable function and operation requires that all parts successfully work together as intended.   Most assemblies can be completed without any issues (especially when using either all Ruger® parts or all Pike Arms parts).  While we are happy to provide warranty service on all Pike Arms® products, we do not offer assembly or trouble shooting gunsmithing services and you should seek competent professional local gunsmithing assistance should you encounter a situation that exceeds your comfort or experience level.
