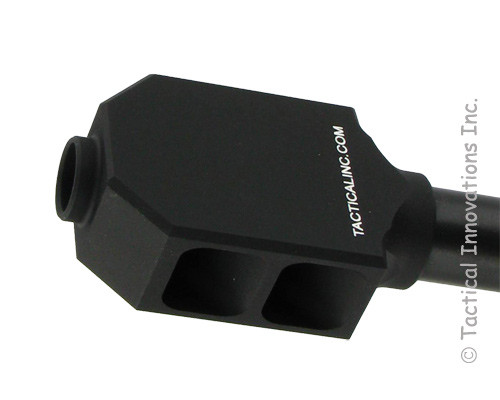

M22/50™ .22LR MUZZLE BRAKE - FLASH HIDER THREADED 1/2x28 TPI FOR RUGER 10/22®

.50 BMG Big Gun Appearance and Functionality ...

NOW FOR YOUR THREADED .22LR RIFLE or PISTOL!

The Tactical Innovations M22/50 Muzzle Brake is precision machined from heat treated 7075 aircraft aluminim (not 6061) and mil-spec type 2 hard anodized for maximum lightweight strength and durability.  It completely eliminates any flash and directs muzzle gasses away from the shooter and at angles away from the target.

The M22/50 Muzzle Brake is threaded 1/2-28 TPI and will thread onto any .22LR barrel that is correctly theaded.   It can be used on a rifle or a pistol.  A crush washer is recommended so that you can set the position of the muzzle brake based on the thread timing.

This is not a toy!  Now you can get a serious big bore muzzle brake for your Ruger 10/22 rifle at a previously unheard of price due to our volume production manufacturing capability.   This is the 10/22 accessory that your shooting buddies will notice... Order one today!

  • PRODUCT NAME M22/50� .22LR MUZZLE BRAKE - FLASH HIDER THREADED 1/2-28 TPI
  • MANUFACTURER Tactical Innovations Inc. Bonners Ferry, ID
  • APPLICATION .22LR & .17 Rifles with Barrels Correctly Threaded 1/2-28 TPI
  • CALIBER .22LR and .17
  • MATERIAL Heat Treated 7075 Aircraft Aluminum Alloy
  • AVAILABLE FINISHES Matte Black, "Titanium" and "Stainless" Clear
  • ATTACHMENT Threaded 1/2-28 TPI x .400 Length of Thread
  • WEIGHT 1.6 Ounces
  • DIMENSIONS Length 2.25"
    Width 1.3875"
    Height 0.75"

Overall Rating: 4.67 out of 5 3 reviews

Review This Product

By Jake Of Idaho
I bought this for my Ruger 10 22 that is fitted with a Bull Matte Black Barrel. The brake looks great, but it does not match up to the .920 barrel. It is definitely made for the threaded tapered barrels. I like the way it looks now, but I would like to see one that matches up to the .920 barrels. <p> Tactical Innovations Comment: It is made for taper threaded barrels as shown in the pictures. Although it will screw on to and work perfectly with a .920 bull barrel, it is not size matched for that size barrel.
By Evan Of Washington
Thanks great product quck shipping also. product was even better then i thought it would be. I was very happy to see it was scaled down to fit witht he 10/22 or the savvage rifle i wanted it for. would be nice to have measurements on the page . produt is 1 3/8 inch wide by 2 1/4 inches long and 5/8 thick
By Steve Of New York
I have a new Marlin XT .22 with the threaded barrel. The M22/50 MUZZLE BRAKE - FLASH HIDER looks and works awesome! Not for heavy barrels though. Mine is a standard barrel and it does just what I wanted it to do, which is to get looks at the range and make my .22 look cool.

Frequently Asked Questions For
M22/50™ .22LR
MUZZLE BRAKE - FLASH HIDER
THREADED 1/2x28 TPI FOR RUGER 10/22®

  1. Will the M22/50TM Muzzle Brake work on guns other than my 1/2-28 tpi threaded Ruger 10/22 taper barrel?
  2. Will the M22/50TM Muzzle Brake work with other calibers such as .17 or .22 magnum?
  3. Will the M22/50TM Muzzle Brake work with .223 / 5.56 firearms?
  4. Will the M22/50TM Muzzle Brake work on my Ruger Charger pistol?
  5. Does the M22/50TM Muzzle Brake work as a sound suppressor? Will it make my shooting any quieter?
  6. Will the M22/50TM Muzzle Brake fit any other manufacturer's barrels other than the factory 1/2-28 tpi threaded Taper Rugerbarrel?
  7. Will the M22/50TM Muzzle Brake change my rifle's accuracy?
  8. Will I be able to "feel" the additional weight on my barrel?
  9. What finishes are currently available?
  10. Is there any functional difference between the different finishes?
  11. Will the M22/50TM Muzzle Brake work on taper barrel 10/22 rifles?
  1. Will the M22/50TM Muzzle Brake work on guns other than my 1/2-28 tpi threaded Ruger 10/22 taper barrel?
    Although the M22/50TM Muzzle Brake will screw on to threaded target / bull / .920 barrel?, it will not match the OD of the barrel. It is designed to be used on 1/2-28 tpi threaded 10/22 taper barrels. For target / bull / .920 barrel, we recommend our M110 MUZZLE BRAKE.
  2. Will the M22/50TM Muzzle Brake work with other calibers such as .17 or .22 magnum?
    The M22/50TM Muzzle Brake works with all standard 1/2-28 tpi threaded Ruger 10/22 calibers, in both .22 and .17. For what should be obvious reasons, it will not work on the Ruger .44 magnum carbine due to the larger bullet diameter.
  3. Will the M22/50TM Muzzle Brake work with .223 / 5.56 firearms?
    The M22/50TM Muzzle Brake is only rated for .22LR applications. The lightweight aluminum construction, while ideal for .22LR applications, would not withstand repeated centerfire use. In order to prevent damage to the accessory and possible injury, it should only be used for .22LR applications.
  4. Will the M22/50TM Muzzle Brake work on my Ruger Charger pistol?
    The M22/50TM Muzzle Brake will work on a Charger pistol with a taper barrel threaded 1/2-28 tpi.
  5. Does the M22/50TM Muzzle Brake work as a sound suppressor? Will it make my shooting any quieter?
    The M22/50TM Muzzle Brake does not decrease the sound when the rifle is discharged. A reduction in sound can only be legally accomplished by the use of a sound suppressor which is regulated by ATF. However, since the high pressure gasses are vented to the atmosphere in multiple directions at different intervals, the perceived sound when firing may be less since the noise is now directed in different directions rather than simply straight ahead, which would be the case when firing without the M22/50TM Muzzle Brake installed.
  6. Will the M22/50TM Muzzle Brake fit any other manufacturer's barrels other than the factory 1/2-28 tpi threaded Taper Rugerbarrel?
    The M22/50TM Muzzle Brake is specifically designed for easy installation on 1/2-28 tpi threaded Taper Ruger barrel from any manufacturer, both Ruger factory as well as aftermarket.
  7. Will the M22/50TM Muzzle Brake change my rifle's accuracy?
    It will not. The bullet does not even know the M22/50TM Muzzle Brake is installed as it flies through it without any contact.
  8. Will I be able to "feel" the additional weight on my barrel?
    You will not be able to tell the difference. The M22/50TM Muzzle Brake is precision machined from aircraft grade aluminum and is so light that it is not perceptible.
  9. What finishes are currently available?
    The M22/50TM Muzzle Brake is available in two finishes to best match and compliment your rifle's finish and accessories. The available finishes are Matte Black and "Stainless" Clear . Both are made from the same aircraft grade aluminum.
  10. Is there any functional difference between the different finishes?
    The M22/50TM Muzzle Brake will function identically regardless of the finish you select.
  11. Will the M22/50TM Muzzle Brake work on taper barrel 10/22 rifles?
    The M22/50TM Muzzle Brake is specifically designed for easy installation on 1/2-28 tpi threaded Rugertaper barrels. It would be unlikely that it would easily fit on any other firearms.
