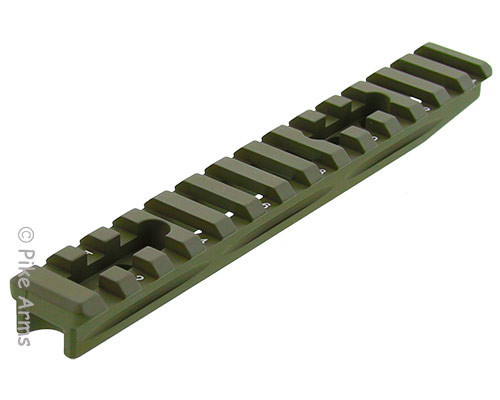

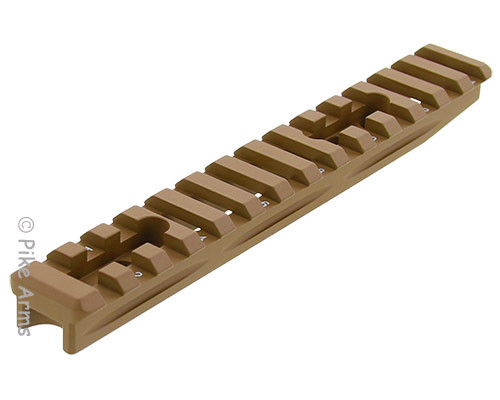

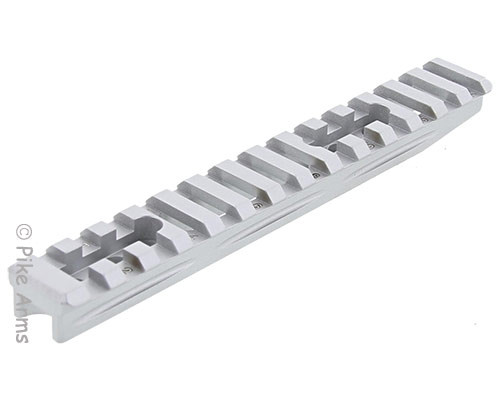

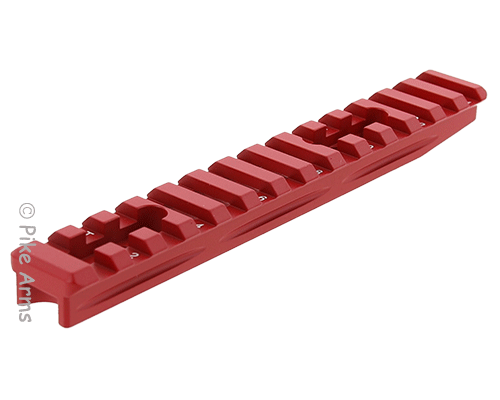

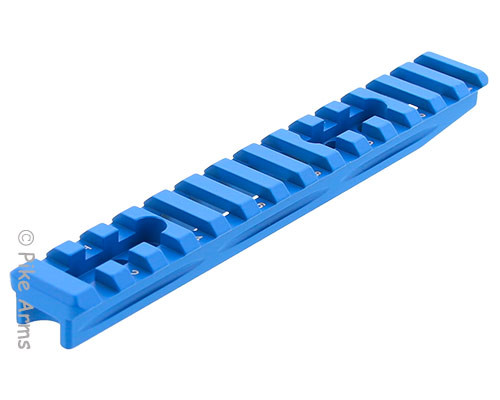

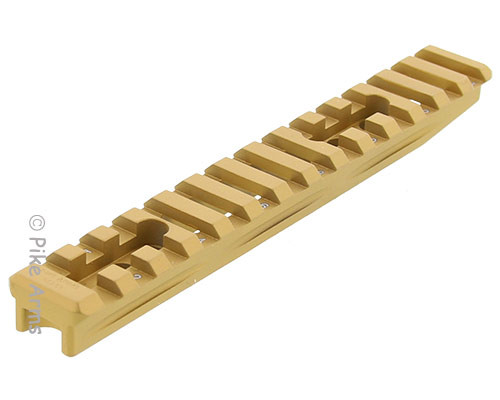

PIKE ARMS®
1/2" MEDIUM HEIGHT
PICATINNY SCOPE RAIL
FOR RUGER® 10/22® FACTORY RECEIVERS
EXTENDED & REVERSIBLE
- PROFESSIONALLY CERAKOTE® FINISHED
- BILLET CNC PRECISION MACHINED
- ATTACHMENT SCREWS INCLUDED

PIKE ARMS®
EXTENDED REVERSIBLE 1/2" HEIGHT
PICATINNY SCOPE RAIL
FOR RUGER® 10/22 FACTORY RECEIVERS

- 6x48 Installation Screws Included (4)
- Professionally Cerakote Finished

Expand the functionality of your 10/22® rifle with a true Picatinny rail for mounting professional rings and optics usually reserved for higher priced firearms platforms.  The The Pike Arms® 1/2" Reversible and Extended Picatinny Rail for Ruger® 10/22® factory receivers is precision CNC machined in the USA from billet aircraft grade aluminum (not an extrusion or a forging) and professionally Cerakote finished for a durable finish. It is available in multiple colors and finishes to match your gun.

At one half inch height, this Pike Arms® 1/2" Reversible and Extended Picatinny Rail for Ruger® 10/22® factory receivers is slightly higher than a traditional 3/8 inch high rail and will accomodate scopes with larger objectives that are usually reserved for centerfire rifle use.  Now with this taller half inch high picatinny rail, you can successfully mount and use your larger objective centerfire optics on your 10/22 rifle.   Extremely large optics may however require even greater height which can be achieved with our 3/4 INCH HEIGHT REVERSIBLE PICATINNY RAIL (Part #00000) while traditional optics will be better suited for our 3/8" standard height picatinny rail (Part #00000).

The Pike Arms® 1/2" Reversible and Extended Picatinny Rail for Ruger® 10/22® factory receivers provides greater forward eye relief for larger optics and is precision machined to mirror the profile of the Ruger® factory receiver while simultaneously providing smooth angles to blend the rail into the receiver.   The rail can also be installed in a reverse pattern to allow shorter scope eye relief for junior shooters with no modifications to the rail or receiver.  So whether your application requires long or short eye relief, this REVERSIBLE SCOPE RAIL provides the versatility for both lengths of eye relief.

The Pike Arms® 1/2" Reversible and Extended Picatinny Rail for Ruger® 10/22® factory receivers is countersunk for attachment to your receiver using the four supplied 6-48 cap screws.  Additional 6-48 CAP SCREWS are also available separately should they be required in the future or for other projects.   Factory tapped receivers require no gunsmithing or fitting and can be easily user installed in minutes.

If you don't require a REVERSIBLE PICATINNY SCOPE RAIL, we offer a variety of models for every application and budget.  Refer to the "RELATED PRODUCTS" section for this product for other offerings.

FEATURES:

  • Medium Height profile picatinny mil-spec profile
  • Picatinny rail is precision machined to exactly match the contour of your Ruger 10/22 receiver for rock solid, straight installation and funtionality
  • Five and one half inches overall length with 13 T-marked Picatinny Rail slots to accomodate Dot Sights, Scopes as well as AR15 picatinny compatible rear sights
  • Mulitple picatinny slots allow for precise eye relief for scopes and similar optics
  • Proudly 100% manufactured in the USA
  • Precision machined from aircraft grade 6061 aluminum billet (not a forging)
  • Hand finished with your choice of colors (select when ordering)
  • Ships complete with necessary assembly screws and hex drive tool.  Easily user installed with no gunsmithing required.
  • PRODUCT NAME MEDIUM HEIGHT 1/2" RUGER 10/22 PICATINNY RAIL MOUNT
  • MANUFACTURER PIKE ARMS
  • APPLICATION Ruger 10/22 Rifle
  • NUMBER OF PICATINNY RAIL SLOTS 13 Slots, T-Marked Laser Engraved
  • LENGTH 5.5 Inches Long
  • WIDTH 3/4 Inch
  • HEIGHT 1/2 Inch
  • WEIGHT 1.5 oz
  • MATERIAL Aircraft Grade 6061 Aluminum Billet
  • FINISH Cerakote
  • ATTACHMENT Screws (4), Included
