PIKE ARMS® UZI 9MM
- 10.2" SEMI AUTO BARREL
- THREADED 1/2-28 TPI
- FOR FULL SIZE / CARBINE

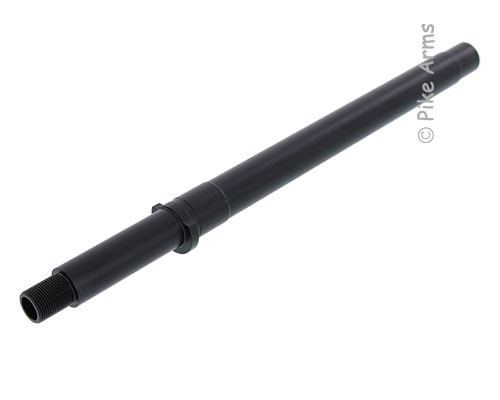

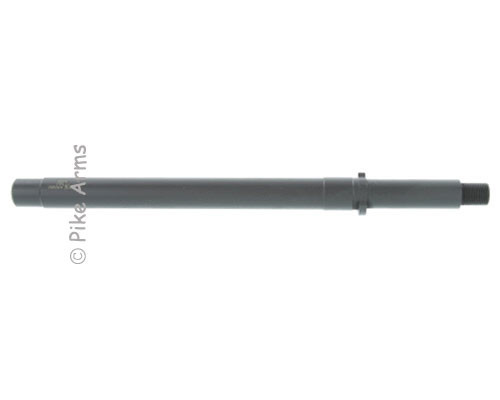

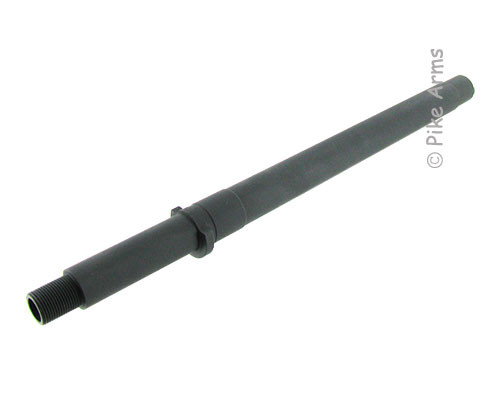

PIKE ARMS® UZI 9MM 10.2" SEMI AUTO BARREL THREADED 1/2-28 TPI FOR FULL SIZE / CARBINE

New Production US manufactured high quality UZI barrels.   Barrels are correctly machined to accomodate the barrel restricting ring that is found in most semi-auto full size UZI firearms such as for  9mm IMI UZI  (Model A & B ), Century Arms UC-9, Vector, Action Arms, Norinco, Group industries, etc.  Will also correctly fit machine guns that were converted from semi-auto guns that have the original semi-auto trunion and barrel restricting ring.

The barrels are made from 4150 chrome moly steel, button rifled, 1:10 twist and are military black phosphate finished.  The chambers are machined identically to the original SMG military profile for reliable feeding and chambering.

Unlike many other newly manufactured barrels for sale from other sellers, our barrels are hand polished (rather than rough finished right off the machine) and are bead blasted for a uniform matte finish before being black phosphate finished (rather than "in the white" for you to have to finish it).  Our barrels are finished and ready to install in your UZI.

The barrel is professionally CNC threaded 1/2-28 TPI on centers for easy screw-on suppressor or muzzle accessory mounting.

Although this barrel will physically drop right into a semi-auto carbine UZI (which is classified as a rifle by ATFE), it can only be installed on a pistol or Short barrel rifle (SBR) in accordance with ATFE rules and regulations.  Please contact your local ATF office for additional regulatory information should you have any questions.  ALL NFA Rules apply

This barrel is USA made and is 922(r) compliant in accordance with ATFE rules and regulations.  Please contact your local ATF office for additional regulatory information should you have any questions.

==========================================================================================================================

Help us make sure you get the correct barrel for your UZI. There are two different barrels that are not interchangeable. One is designated "Semi Barrel" and the other is the "SMG Barrel". You must order the correct one to fit your UZI. Here is how you can tell the difference to know which one you want:

SEMI BARREL:
The "Semi Barrel" which is generally going to fit a factory 9MM semi-automatic UZI such as IMI UZI (Model A & B), Century Arms UC-9, Vector, Action Arms, Norinco, Group industries, etc will have a .707 diameter at the trunion and will have the chamber end machined to .625 to allow it to fit into the barrel restricting ring.

SMG BARREL:
As the name suggests, this barrel fits UZI sub-machine guns and will NOT physically fit and slide into the semi-auto models. The SMG barrels have a .747 trunion and are not machined to fit past the barrel restricting ring since the machine guns do not have a barrel restricting ring.

The easiest way to tell quickly which barrel you need is to see if your gun has a barrel restricting ring and if your current barrel is turned down at the chamber to allow the barrel to slide into it. If so, you would want the Semi Barrel.

If you build a gun out of a parts kit, you will have to measure your trunion and note if there is a barrel restricting ring in order to determine which barrel is the correct fit. We currently do not offer a barrel that has a SMG trunion diameter and a barrel restricting ring since it is not a production model standard.

  • PRODUCT NAME PIKE ARMS� UZI 9MM 10.2" SEMI AUTO BARREL THREADED 1/2-28 TPI FOR FULL SIZE / CARBINE
  • MANUFACTURER Pike Arms Inc.
  • CALIBER 9MM NATA / LUGER
  • APPLICATION UZI Semi Carbine (such as for 9mm IMI UZI (Model A & B ), Century Arms UC-9, Vector, Action Arms, Norinco, Group industries, etc.)
  • RIFLING TWIST 1:10 - One Turn In 10 Inches
  • LENGTH 10.2" OAL
  • WEIGHT
  • CONSTRUCTION 4150 Chrome Moly Steel
  • FINISH Matte Black Phosphate / Parkerized
  • MUZZLE THREAD PITCH Threaded 1/2-28 TPI For Suppressor or Similar Threaded Muzzle Accessories (Non-Threaded Barrels Are Available - Refer to Part # 07176)
  • THREAD PROTECTOR Available Separately (Refer to Part # 07499)
  • 922(r) Compliant USA Made - 922(r) Part
