Attention

  • *** 1/2-28 tpi THREADED BARREL REQUIRED ***

PIKE ARMS®
"920" 22LR FLASH HIDER
THREADED 1/2x28 TPI
FOR 10/22® THREADED BULL BARRELS
- CHOICE OF COLORS

PIKE ARMS® "920" 22LR FLASH HIDER / COMPENSATOR THREADED 1/2x28 TPI FOR 10/22® THREADED BULL BARRELS
- CHOICE OF COLORS

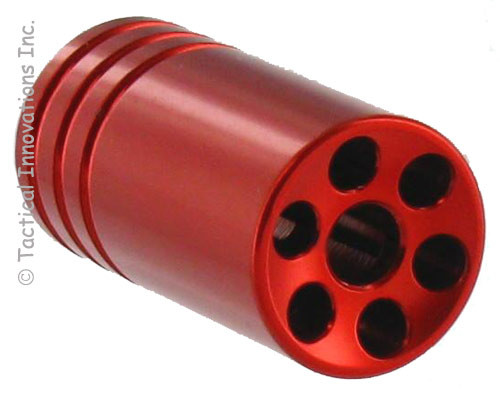

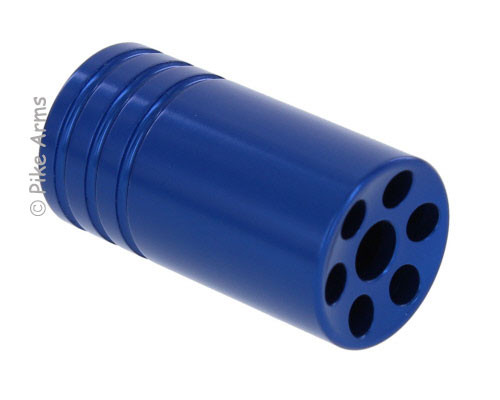

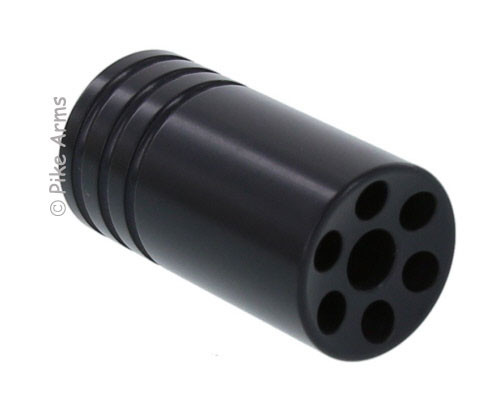

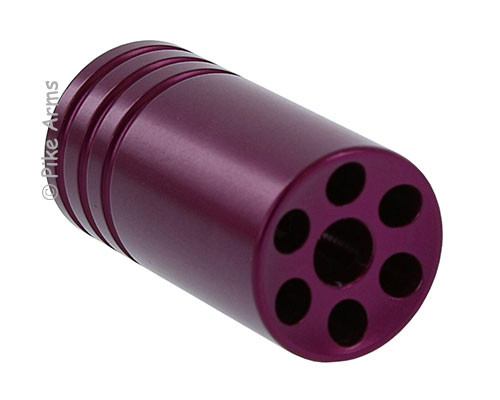

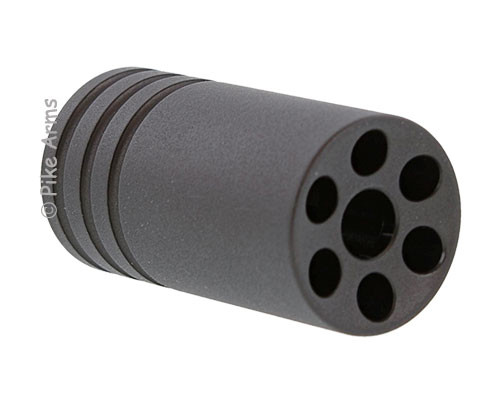

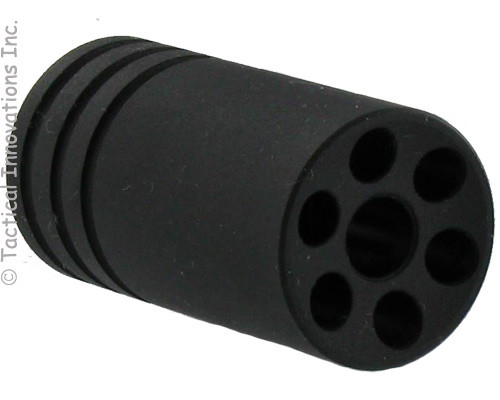

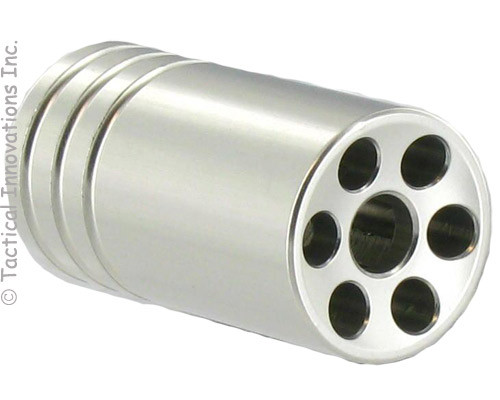

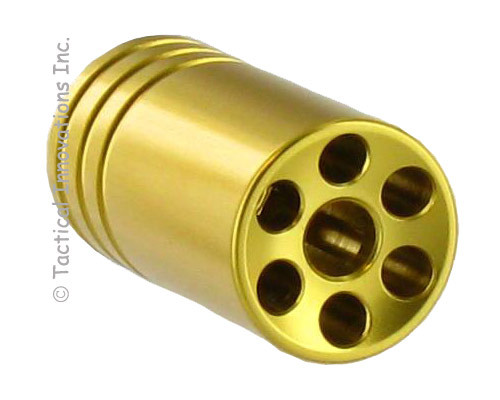

The Pike Arms® "920" 22LR FLASH HIDER THREADED 1/2-28 TPI for Ruger® 10/22® .920 bull barrels that are threaded 1/2-28 TPI is precision CNC machined from T6 aircraft aluminum and anodized for a professional finish and uncompromising durability.  The Pike Arms® "920" Flash Hider is CAD engineered to eliminate muzzle flash as well as any possible recoil resulting in faster target acquisition with minimal additional length and weight.  The Pike Arms® "920" Flash Hider is available in your choice of a variety of popular colors.

In order to attach and use the Pike Arms® "920" Threaded Flash Hider, you MUST have a barrel threaded 1/2-28 TPI x .400.  Although the Pike Arms® "920" 22LR Flash Hider will screw on to any barrel that is correctly threaded 1/2x28 TPI, it is designed and intended for use with .920 diameter bull / target 10/22® 22LR barrels for a seamless appearance with the barrel.  It should not be used for other calibers.

The availability of popular colors at your option allows your rifle to be customized with different color Pike Arms® "920" 22LR Flash Hiders to compliment and accentuate any custom rifle color or theme for your build.  Installation is quick and easy by simply screwing the Pike Arms® "920" 22LR Flash Hider onto your threaded Ruger® 10/22® bull barrel.

  • PRODUCT NAME PIKE ARMS® "920" 22LR FLASH HIDER THREADED 1/2x28 TPI FOR RUGER® 10/22® THREADED BULL BARRELS
  • MANUFACTURER Pike Arms Inc.®
  • APPLICATION .22LR THREADED 1/2x28-.400 Barrels Such As Ruger 10/22 Rifle with .920 BULL BARREL.
  • CALIBER .22LR
  • ATTACHMENT 1/2x28 TPI - .400 Threaded
  • COLOR OPTIONS Matte Black
    Satin "Stainless" Clear
    Blue
    Green
    Gold
    Purple
    Red
  • FINISH ANODIZED
  • MATERIAL 6061 Aircraft Grade Aluminum
  • DIMENSIONS Length 1.75"
    OD .920"
  • WEIGHT 1.3 Ounces

Overall Rating: 5 out of 5 2 reviews

Review This Product

By Jake Of North Dakota
This is a great addition to my 10/22 rifle. The machining is very clean and professional the price is good. Shipping was fast. I took it right out of the box and had it on my rifle in seconds. I will definitely be ordering from TI again.
By Dave Of New York
These are very nicely machined and the anodizing is top notch. You will want to check how much thread is on your barrel before ordering. My Dlask barrel has 0.63" of threading and the muzzle break will only take 0.6" of barrel leaving a 0.03" gap. It's not a problem if you're prepared to tap it a tad deeper.

Frequently Asked Questions For

PIKE ARMS®
"920" 22LR FLASH HIDER
THREADED 1/2x28 TPI
FOR 10/22® THREADED BULL BARRELS
- CHOICE OF COLORS

  1. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER for Ruger® 10/22® .920 bull barrels work on guns other than my Ruger® 10/22®?
  2. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work on TAPER Barrel 10/22® rifles?
  3. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work with other calibers such as .17 or .22 magnum?
  4. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work with .223 / 5.56 firearms?
  5. Does the Pike Arms® "920" 22LR THREADED FLASH HIDER work as a sound suppressor? Will it make my shooting any quieter?
  6. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER change my rifle's accuracy?
  7. Will I be able to "feel" the additional weight on my barrel?
  8. What finishes are currently available?
  9. Will the Pike Arms® "920" THREADED 22LR FLASH HIDER block my iron sights or interfere with my scope?
  1. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER for Ruger® 10/22® .920 bull barrels work on guns other than my Ruger® 10/22®?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER for Ruger® 10/22® .920 bull barrels is specifically designed for Ruger® 10/22® bull barrels. While it will be able to be screwed onto any 22LR firearm that has the barrel correctly threaded 1/2x28 TPI, It would be unlikely that it would correctly match the diameter of the barrel on any other firearms unless that barrel was also exactly .920 diameter.
  2. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work on TAPER Barrel 10/22® rifles?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER will physically screw onto threaded TAPER barrels that are correctly threaded 1/2x28TPI but the Pike Arms® "920" THREADED FLASH HIDER will be a considerably larger diameter than the end of the taper barrel which is about .600 diameter.
  3. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work with other calibers such as .17 or .22 magnum?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER works with all standard Ruger® 10/22® calibers, in both .22 and .17.
  4. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER work with .223 / 5.56 firearms?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER is only rated for .22LR applications. Although it will physically screw onto a 5.56 rifle such as an AR15, the lightweight aluminum construction, while ideal for .22LR applications, would not withstand repeated center fire use. In order to prevent damage to the Pike Arms® "920" 22LR THREADED FLASH HIDER and possible injury, it should only be used for .22LR applications.
  5. Does the Pike Arms® "920" 22LR THREADED FLASH HIDER work as a sound suppressor? Will it make my shooting any quieter?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER does not decrease the sound when the rifle is discharged. A reduction in sound can only be legally accomplished by the use of a sound suppressor which is regulated by ATF.
  6. Will the Pike Arms® "920" 22LR THREADED FLASH HIDER change my rifle's accuracy?
    It will not. The bullet does not even know the Pike Arms® "920" 22LR THREADED FLASH HIDER is installed as it flies through it without any contact.
  7. Will I be able to "feel" the additional weight on my barrel?
    You will not be able to tell the difference. The Pike Arms® "920" 22LR THREADED FLASH HIDER is so light that it is not perceptible.
  8. What finishes are currently available?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER is available in most popular colors to best match and compliment your rifle's finish and accessories. All are made from aircraft grade aluminum.
  9. Will the Pike Arms® "920" THREADED 22LR FLASH HIDER block my iron sights or interfere with my scope?
    The Pike Arms® "920" 22LR THREADED FLASH HIDER does not block your barrel mounted iron sights and will have no impact on your scope.
