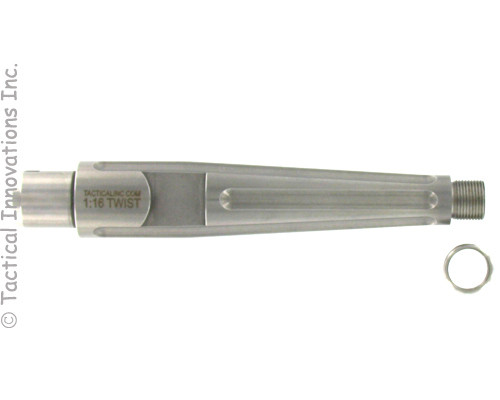

5.5" POLISHED STAINLESS STEEL - 1:16 TWIST - FLUTED TAPER THREADED BARREL WITH THREAD PROTECTOR FOR COHORT™ PISTOL

Tactical Innovations' FLUTED 5.5" STAINLESS STEEL THREADED BARREL WITH THREAD PROTECTOR is available on COHORT™ pistols or for any other 10/22® receiver based custom pistol build.  This FLUTED 5.5" STAINLESS STEEL THREADED BARREL is too short to be used on an ELITE22™ or CHARGER™ pistol without either a real suppressor or a muzzle accessory (such as a FAKE SUPPRESSOR) installed.  However, with a real or fake suppressor installed, the overall combined length of the barrel and suppressor remains close to the original length of the Charger™ factory barrel.

The barrel is CNC machined from US Certified stainless steel and is professionally threaded 1/2x28 TPI with .400 length of thread for mounting your suppressor or any other AR compatible accessory.  It comes complete with THREAD PROTECTOR included.

Although this barrel will physically fit on a 10/22® factory receiver, it is too short to legally be installed on a receiver that has previously been assembled as a rifle per ATF regulations. Installation of this barrel on a previously assembled rifle receiver (such as a 10/22® receiver) regardless of what configuration or stock it would not be assembled with, is a violation of federal law unless the receiver is first NFA registered as a Short Barrel Rifle. Contact your local ATF office for additional information regarding NFA regulations and registration requirements.

If you want to assemble a 10/22® based handgun, you must start with a "virgin" never before assembled receiver such as the CH22 RECEIVER or the ELITE22 RECEIVER.

  • PRODUCT NAME 5.5" POLISHED FLUTED TAPER STAINLESS THREADED BARREL WITH THREAD PROTECTOR
  • MANUFACTURER Pike Arms Inc. Bonners Ferry, ID
  • CALIBER .22LR
  • APPLICATION - SBR Registered Ruger 10/22 Rifles with modified short stocks
    - Tactical Innovations Cohort Pistol
    - Custom 10/22 Based Handguns
  • DIMENSIONS 5.5 Inches Long
    Ruger Factory Taper
  • DIAMETER AT THREAD
    (Suppressor Shoulder)
    .600 OD
  • THREAD PITCH 1/2-28 x.400 Length Of Thread
  • FINISH Polished Stainless
  • LENGTH 5.5 Inches Long
  • WEIGHT 9.2 Ounces
  • ATTACHMENT TO RECEIVER V-Block Attachment Using 2 Cap Screws (Not Included)
  • SIGHTS None. No Provision For Iron Sights.
  • RIFLING / TWIST 1:16 Rifling Twist for "Standard" Ammunition
  • THREAD PROTECTOR Thread Protector Included

Review This Product

Frequently Asked Questions For

5.5" POLISHED STAINLESS STEEL - 1:16 TWIST - FLUTED TAPER THREADED BARREL WITH THREAD PROTECTOR FOR COHORT™ PISTOL

  1. Will this barrel fit my Ruger Charger pistol?
  2. Can I purchase this barrel in a custom / modified configuration, such as a different length or a different taper and contour etc?
  3. What accuracy can I expect from this barrel?
  4. Will this pistol barrel work on my Ruger 10/22 rifle?
  1. Will this barrel fit my Ruger Charger pistol?
    Although this 4.5" barrel will physically fit a Ruger Charger pistol, it will not extend beyond the wood stock and the muzzle flash will damage the wood stock. In order to use the barrel on a Charger pistol, you would have to ALWAYS use it with a suppressor or similar barrel extension to get the overall length beyond the Charger wood stock. This barrel is designed to be used with: - SBR Registered Ruger 10/22 Rifles with modified short stocks
    - Tactical Innovations Cohort Pistol
    - Custom 10/22 Based Handguns
  2. Can I purchase this barrel in a custom / modified configuration, such as a different length or a different taper and contour etc?
    The barrel is only available in our standard 8" configuration as noted in our description. In order to keep our prices as low as possible, barrels are manufactured in quantity and are not available in custom configurations.
  3. What accuracy can I expect from this barrel?
    Our barrels are conservatively spec'd to us by the vendor as Ruger factory accuracy or better. Although its obviously not a match olympic target barrel, it is more than sufficiently accurate for traditional plinking and informal target shooting and is backed by our 30 day return policy.
  4. Will this pistol barrel work on my Ruger 10/22 rifle?
    Although it will physically attach with no modifications required, installation of this barrel on a rifle would be a violation of federal law and would result in the creation of a Short Barrel Rifle which must be registered with ATF. Contact your local class 3 dealer or ATF for additional information regarding possession and registration of NFA firearms.

PIKE ARMS® REPLACEMENT BARREL
ASSEMBLY INSTRUCTIONS

FOR RUGER® 10/22® RECEIVERS

Thank you for your purchase of a Pike Arms replacement barrel for Ruger 10/22® rifles and compatible receivers. Our barrels are made in the USA using modern CNC equipment to produce a barrel that will provide many years of functionality and pleasure. In order to prevent possible damage to your receiver or barrel, please review these assembly instructions and tips before attempting to assemble the barrel to your receiver.

BARREL INSTALLATION:

The barrel is installed using a V-Block and cap screws identically to the factory assembly. The shank on the barrel, regardless of the manufacturer, will be larger than the hole in the receiver and will not slip into the receiver without fitting. The receiver barrel should not be “fitted” or modified during the assembly process; only the barrel shank should be fitted to the receiver. It is critical that the barrel shank have a light press fit into the receiver. If the barrel shank is loose in the receiver hole, then the barrel will droop when the V-block is tightened and it will be impossible to align a scope with the point of impact since the barrel will be slightly pointing down and will not be parallel with the bore.

To fit the barrel to the receiver, you will need to only remove a very small amount of material from the barrel shank (the part of the barrel that goes into the receiver hole). Do not use a dremel® or similar power tool to grind on the receiver hole or the barrel shank. Use sandpaper or a flat file on the barrel shank only. One method is to roll the barrel across your lap while you use the file or sandpaper in order to ensure that you are removing the same amount of material from all sides of the barrel shank to maintain its concentricity. When fitted to the proper size, and with the barrel shank lightly oiled, you should be able to press the barrel shank into the receiver hole by hand without using a mallet or similar to hammer the barrel into the receiver. It should be tight but you should still be able remove it if necessary and be able to rotate the barrel in order to align the extractor slot with the extractor on the bolt.

With the barrel now fitted into the receiver hole, place the bolt in the receiver WITHOUT the recoil spring and with the bolt retracted for clearance, rotate the barrel so that the extractor in the bolt lines up with the extractor slot in the barrel. Use caution not to pull the extractor out of the bolt when rotating the barrel for alignment. Stand the receiver on the opposite end from the barrel and press down on the barrel into the receiver. Although a traditional V-block is often adequate, an ADJUSTABLE V-BLOCK (Part #00204) is recommended so that you can set the barrel to any angle relative to the bore. Install the V-Block and the cap screws hand tight. Torque the cap screws while pushing down on the barrel and verify that the barrel is not pulling toward the V-block as you tighten the V-Block. If the barrel is correctly fitted to the receiver hole, the barrel will not droop (ie pull toward the V-block). If it does, you will have to use an adjustable V-Block to prevent the barrel from drooping as the V-Block is tightened. Prior to the V-Block being torqued, verify that the extractor in the bolt aligns perfectly with the extractor slot in the barrel. Barrel installation is complete.

BOLT CONSIDERATIONS:

The width of the bolt is critical for safe and reliable operation. Ruger® factory bolts that have been “polished” will often then be too thin from the polishing process removing metal and a slam fire condition is possible. Do not use a Ruger® factory bolt that has been “polished” or otherwise modified in any way. When assembling your rifle, ensure that the bolt that you use is wide enough to not allow the bolt to hit the rim and fire the round if the bolt is pushed all the way to either side of the receiver. The entire rim of the round should always be in the corresponding pocket of the bolt regardless of the left or right position of the bolt in the receiver.  



TROUBLE SHOOTING:

Chambering:

In order for the rifle to successfully chamber the new round each time, the bolt face has to be smooth and have the correct geometry. Generally, a machined bolt will have a more uniform finish and geometry than a Ruger® factory cast bolt although cast bolts will work most of the time. The recoil spring has to have sufficient force to be able to drive the weight of the bolt forward and strip a round from the magazine. The magazine feedlips have to be designed to ensure that the feed angle will correctly present the round to the chamber. Plastic magazines often will wear out and the feed angle will change. Similarly, different brands of high capacity magazines will have different feed angle geometry resulting in one brand working well and another not working at all. In addition, the actual bullet shape of different brands of ammunition in high capacity magazines will change the feed angle relative to other brands of ammunition that have a different bullet profile. For testing, always use a Ruger® 10 round rotary magazine since the rounds are individually nested and are not stacked on top of each other.

The 10/22® rifle operates based on the blowback of the bolt by the brass when fired. In order for the rifle to function correctly, the recoil of the fired brass has to be greater than the combined resistance of (1) the weight of the bolt, (2) the force of the recoil spring (3) cocking the hammer and (4) the drag of the bolt on the receiver especially when new, dirty or not oiled. Different brands of ammunition, especially bulk ammunition, will have lighter recoil than ammunition such as CCI® MiniMags®. Similarly, ammunition can have different blowback force from one round to the next due to powder variations in the ammunition. As a result, if the fired round does not blow the bolt all the way rearward each time, you will experience failures to feed as well as failures to eject.

Failure to Feed:

When the bolt does not blow back far enough, it will not get behind the next round in the mag in order to strip and push it into the barrel. When this occurs, you will see the bolt stopped and usually dug into the lead bullet of the next round in the magazine. A similar condition, although more difficult to diagnose, occurs when the bolt does not blow back far enough each time and just barely blows back to minimally get behind the next round in the magazine, at which point you will not have the full travel and force of the bolt coming forward to strip the round out of the mag and run it into the chamber. To remedy this issue, you will have to shoot hotter ammo or reduce the countering recoil force as noted above by modifying the recoil spring.

Stovepipe Failure:

A stovepipe failure or similar with fired brass ending up jammed in the receiver is usually a function of the extractor on the bolt not pulling the fired brass out of the chamber as the bolt is recoiling to the rear of the receiver. Ideally, the brass would exit the barrel and stay on the face of the bolt without an extractor but the extractor makes sure that the brass leaves the barrel and stays on the bolt while the bolt recoils until the brass hits the ejector with enough force to be thrown out of the gun. If the extractor does not grab the brass out of the chamber or does not hold the brass on the face of the bolt, you should replace the extractor. We offer a Sharp Claw Extractor (Part # 00422 that is EDM cut and not stamped) that will cut into the brass to pull it from the receiver. Most extraction issues are due to the failure of the extractor, which is an easy and inexpensive part to replace.

A stovepipe stoppage can also occur when the bolt does not blow back far enough / hard enough for the brass to strike the ejector with enough force to kick it out of the receiver, and instead it simply falls off the bolt into the receiver. To remedy this issue, you will have to either shoot hotter ammunition or reduce the recoil resistance as noted above, with the easiest option being to clip one or two coils off the recoil spring while continuing to test after clipping each coil.

Reliable function and operation requires that all parts successfully work together as intended. Many issues can be determined and resolved by substituting known non-issue Ruger® factory parts out of the assembly one at a time until the problematic part(s) are identified. Although the majority of rifle assemblies can be completed without any issues (especially when using either all Ruger® parts or all Pike Arms parts), you should seek competent professional gunsmithing assistance should you encounter a situation that exceeds your comfort or experience level. We are happy to perform a comprehensive measurement and quality check on any of our barrels but do not offer assembly or trouble shooting gunsmithing services.

© Pike Arms Inc.  2015  All Rights Reserved
